What Does Asbestos Look Like? 10 Materials, Dates and Proof

Search results for this question are full of close-ups of white fluff and grey board, with an unspoken promise: compare your ceiling to the picture and you will know. The regulators say the opposite. This page takes them seriously and still answers the practical question: what to suspect, and from which decades.

Why your eyes cannot settle it

The EPA homeowner guidance puts it in one line: generally, you cannot tell whether a material contains asbestos simply by looking at it, unless it is labelled. CPSC's Asbestos in the Home guide uses almost the same words and adds the working rule: treat the material as if it contains asbestos, or have it sampled and analysed by a qualified professional.

Three things make sight unreliable. Asbestos in buildings is usually a minor ingredient, so a cement shingle or a bag of joint compound looks like cement or plaster. Colour misleads: the NSW Government asbestos guidance notes that natural asbestos can be blue, brown, green or white, and that mixing or painting changes it. And each suspect product family also exists without asbestos; the EPA asbestos FAQ notes that not all siding or roofing contains it.

The regulated forms, as listed in ATSDR's 2008 Libby summary report, are chrysotile, crocidolite, amosite and the fibrous varieties of tremolite, actinolite and anthophyllite. In rock they can look silky, as in the specimen above. Bound into a product, that look is gone.

What you can see	Why it raises suspicion	Why it cannot confirm
Product type (lagging, cement sheet, old vinyl tile)	It appears on EPA and CPSC suspect lists	EPA notes not every product of the type contains asbestos
Installed before 1980	OSHA presumes several material classes from then contain it	EPA Region 2 warns later buildings may contain it too
Fibrous, fluffy or chalky texture	Friable material releases fibre when disturbed	Fibreglass, rock wool and cellulose are fibrous too
A printed label or stencil	The one visual clue EPA and CPSC accept	No label proves nothing, NSW guidance warns
Colour	Raw fibre colour differs by mineral	Binders, paint and age change it

The ten suspect materials, one by one

The list draws on EPA's Learn About Asbestos page, the EPA Region 2 renovation fact sheet, CPSC's Asbestos in the Home guide and the definitions in OSHA 29 CFR 1926.1101. Appearance descriptions are typical, not proof of content.

Material	What it usually looks like	Date marker and source	Deep dive
Vermiculite loose-fill (attics, walls)	Pebble-like granules, grey-brown or silver-gold	Libby supplied over 70% of US vermiculite, 1919 to 1990 (EPA)	Insulation
Pipe and boiler lagging	White or grey wrap, block or cast elbows, often cloth-jacketed	Installs banned 1975; presumed if built by 1980 (EPA, OSHA)	Pipe insulation
Popcorn and sprayed ceilings	Lumpy, cottage-cheese texture	Spray-on bans 1973 and 1978 (EPA)	Popcorn ceiling
Ceiling tiles	Square fibreboard, often pinholed	Listed for pre-1975 buildings (EPA Region 2)	Ceiling tiles
Vinyl and asphalt floor tile	Hard, thin square tiles	Presumed if installed by 1980 (OSHA)	Floor tiles
Floor tile mastic	Black or dark brown adhesive	Listed with flooring adhesives (EPA)	Floor tile page
Joint compound and plaster	Any smooth or skimmed wall	Patching compounds banned 1977 (CPSC)	This page
Cement siding	Rigid, flat shingles, often pressed grain	Listed by EPA and CPSC	Siding
Cement roof shingles	Rigid, slate-like shingles	Listed by EPA and CPSC	Shingles
Stove and furnace parts	Grey millboard, paper, gaskets	Listed by CPSC	This page

Loose-fill vermiculite insulation

The EPA vermiculite guidance describes a pour-in product in pieces up to nearly an inch long, and it is the one material where EPA says to assume contamination rather than test. Our asbestos insulation guide covers it in full.

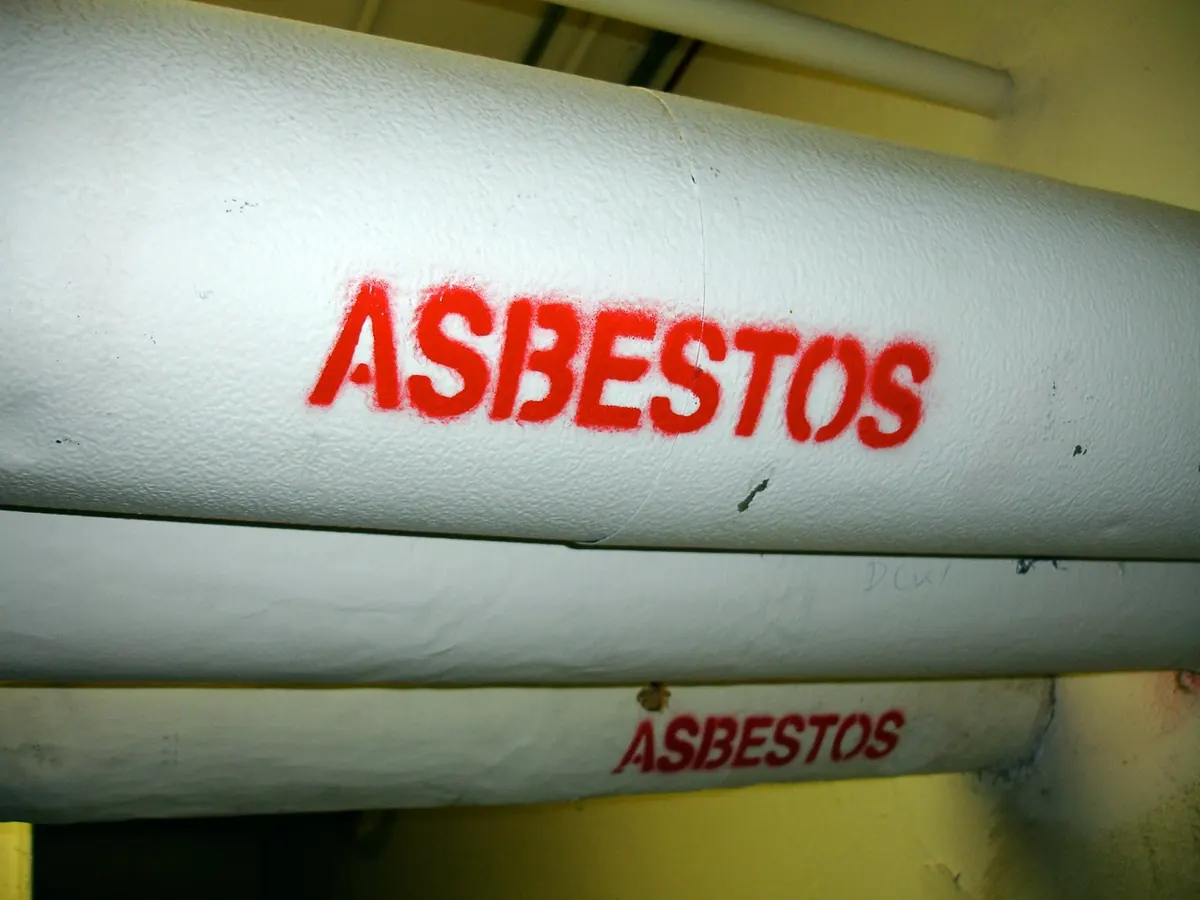

Pipe lagging and boiler insulation

OSHA 29 CFR 1926.1101 defines thermal system insulation as material on pipes, fittings, boilers, breeching, tanks and ducts. It turns friable once damaged. See asbestos pipe insulation.

Popcorn and other sprayed ceilings

The spray-applied bans of 1973 and 1978 that EPA records stopped new application, not existing ceilings. The popcorn ceiling page covers testing and removal.

Ceiling tiles

The EPA Region 2 renovation fact sheet names ceiling tiles among materials typical of large pre-1975 structures. A pinhole pattern says nothing about content. See asbestos ceiling tiles.

Vinyl and asphalt floor tile

Tile size is the most quoted clue and only a clue. Our floor tile guide weighs size, date and adhesive in turn.

Mastic under the floor

The adhesive under old tile is a separate material on EPA’s list, and labs report it as its own layer. It is covered on the floor tile page.

Joint compound, texture and plaster

CPSC's Asbestos in the Home guide records that textured paint and patching compounds were banned in 1977. On a wall they look like any skim coat, and EPA samples them with the wallboard as one system (see below).

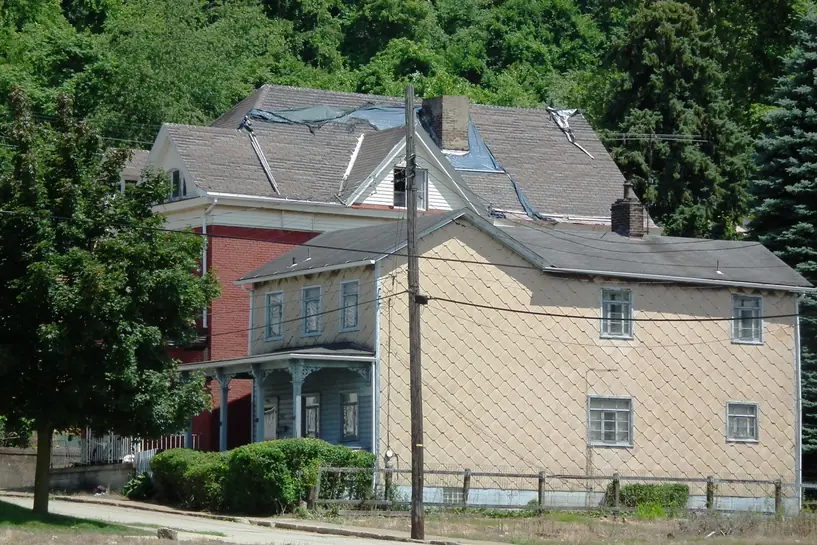

Cement siding

Rigid, brittle and usually laid as flat rectangular shingles. See asbestos siding.

Cement roof shingles

The roofing version is a stiff, slate-like shingle on older houses and outbuildings. See asbestos shingles.

Stove, furnace and fireplace parts

CPSC's Asbestos in the Home guide lists millboard and paper behind wood stoves, furnace door gaskets and artificial fireplace embers, which it banned in 1977.

Reading the age of a building

If appearance is weak evidence, date is the strongest evidence you can gather without a sample. According to USGS Data Series 140, US apparent consumption peaked in 1973 at 803,000 metric tons and had fallen to 290 tons by 2022. Per the same USGS data, 93% of all the asbestos the country consumed was used before 1980. The series covers every use, not only building products, so read it as a timing signal.

Federal rules add sharper markers. They are not the end of asbestos in buildings: the EPA Region 2 renovation fact sheet warns that later structures may also contain it, and our ban timeline explains why the 1989 general ban mostly did not survive.

Year	Rule or record	What it covers	Source
1919 to 1990	Libby vermiculite sales window	Over 70% of US vermiculite came from Libby	EPA vermiculite guidance
1973	Clean Air Act ban	Spray-applied fireproofing and insulation	EPA's record of federal asbestos bans
1975	Clean Air Act ban	Installing pipe and block insulation	EPA's record of federal asbestos bans
1977	CPSC bans	Patching compounds, fireplace embers	CPSC's Asbestos in the Home guide
1978	Clean Air Act ban	Other spray-applied surfacing	EPA's record of federal asbestos bans
1980	OSHA presumption date	TSI, surfacing, asphalt and vinyl flooring	OSHA 29 CFR 1926.1101
1989 and 1991	TSCA ban, then vacatur	Flooring felt, rollboard, some papers stayed banned	EPA's record of federal asbestos bans
2024	Chrysotile rule	Ongoing chrysotile uses	EPA's record of federal asbestos bans

Condition beats appearance

Once a material is suspect, condition decides what happens next. The EPA homeowner guidance says material in good condition that will not be disturbed should be left alone; fibre is released when it is damaged, cut, sanded, drilled, scraped or removed improperly. OSHA 29 CFR 1926.1101 defines intact material as ACM that has not crumbled, been pulverised or otherwise deteriorated so that the asbestos is no longer likely to be bound with its matrix.

What you see	What it means	What EPA guidance points to
Intact, painted, undisturbed	Fibre bound in its matrix	Leave it alone and check it now and then
Tears, abrasion, water staining	Starting to break down	Limit access; have it assessed
Crumbling, powdery, hanging	Friable and shedding	Keep people away; call a trained professional
Sound, but a renovation is planned	Disturbance is coming	Sample before work starts
Vermiculite in any condition	Assumed contaminated	Leave undisturbed; do not test or remove it yourself

Repair is a real option. EPA describes encapsulation, a sealant that binds fibres or coats the surface, and enclosure, a cover placed over or around the material. Removal is for major renovation or extensive damage.

Which situation are you in?

Work down the list and stop at the first line that fits.

1. It is vermiculite. Stop there. EPA says to assume it contains asbestos, not to store things on it and not to remove it yourself. Go to the insulation guide.
2. It is labelled, or a survey report names it. Treat it as asbestos-containing and plan around it.
3. It is damaged or crumbling. Keep people away, do not sweep or vacuum the debris, and get it assessed.
4. You are about to renovate, drill or demolish. Have every suspect material in the work area sampled first. Prices are on our asbestos testing cost page.
5. It is intact and nothing will disturb it. EPA says no testing is needed. Note it and check it now and then.
6. You are not sure what it is. Treat it as suspect until a lab says otherwise.

Material age	Condition	Work planned	Next step
Before 1980	Intact	None	Leave it; monitor
Before 1980	Intact	Renovation	Sample before work
Before 1980	Damaged	Any	Restrict access; assess
1980 or later	Intact	None	Low priority; note it
1980 or later	Any	Renovation	Sample suspect material anyway
Unknown	Any	Any	Treat as pre-1980

How it actually gets confirmed

Confirmation means a bulk sample analysed by polarized light microscopy. The NIST NVLAP asbestos programme accredits laboratories for PLM bulk analysis under EPA Method 600/R-93/116 and 40 CFR 763, and for TEM analysis of air samples. A material counts as asbestos-containing when it holds more than 1% asbestos, per the definition in OSHA 29 CFR 1926.1101.

The EPA homeowner guidance says a trained, accredited professional should take the sample, not the homeowner, while noting that federal law does not require accreditation for work in detached single-family homes; some states do. Our state accreditation map shows which. Kits are compared on the asbestos testing kit page.

Route	What it proves	Limits
Product label or survey record	Content, if the record matches the material	Only as good as the record
PLM bulk analysis at an NVLAP lab	Presence and estimated percentage by layer	EPA warns of false negatives on floor tile
TEM on floor tile or mastic	Low concentrations PLM misses	A separate analysis
Composite wall-system sample	Joint compound and wallboard together, as EPA recommends	Report the weighted result, not one layer
Testing vermiculite	Not recommended for homeowners	EPA says results may be erroneous

The TEM and wall-system rows come from the EPA asbestos FAQ. After a positive result, see asbestos removal cost and does insurance cover asbestos removal.

For contractors: the presumption is the scope

On a water, fire or mould job in an older building, identification is a regulatory duty. Under OSHA 29 CFR 1926.1101, owners must determine the presence, location and quantity of ACM and PACM before work begins and notify employers and tenants. PACM is thermal system insulation and surfacing in buildings constructed no later than 1980; asphalt and vinyl flooring installed by then is treated the same way unless rebutted.

OSHA accepts rebuttal by an AHERA inspection or by samples taken under 40 CFR 763.86 and analysed by an accredited lab. Removing TSI or surfacing ACM or PACM is Class I work, other ACM such as flooring is Class II, and repair that disturbs ACM is Class III. A wet pre-1980 ceiling with sprayed surfacing is a Class I tear-out until a lab says otherwise.

Item	Why it matters on the file
Build and renovation dates	Sets the PACM presumption
Suspect material list by room	Defines the sampling scope
Lab report naming NVLAP lab and layers	Rebuts or confirms the presumption
Photos before any demolition	Shows the material was intact or already damaged
Owner notification record	OSHA (k) duty to inform
Separate line item for sampling	Keeps testing out of the mitigation total

More on the rules is on our standards hub.

Questions people actually ask

How do you tell if you have asbestos?

By sampling, not by looking. EPA says you generally cannot tell whether a material contains asbestos by sight unless it is labelled. Use product type and installation date to decide what is suspect, then have damaged material, or material you plan to disturb, sampled by a trained professional and analysed by PLM at an accredited laboratory.

Can you live in a house with asbestos?

EPA guidance says material in good condition that will not be disturbed should be left alone, and that no testing is needed in that case. The concern is disturbance: cutting, sanding, drilling, scraping or damage. Vermiculite attic insulation is handled separately: EPA says to leave it undisturbed and not to store items in that attic.

Where is asbestos most commonly found?

EPA and CPSC list attic and wall insulation, especially vermiculite, pipe and boiler insulation, textured paint and patching compounds, popcorn and sprayed ceilings, vinyl floor tiles with their backing and adhesive, cement roofing and siding shingles, and the board or paper around wood stoves and furnaces. Buildings put up before 1980 are the main concern.

Will 30 minutes of asbestos exposure hurt you?

That is a medical question this page does not answer; ask a doctor. Regulation is narrower: OSHA limits workers to 0.1 fibre per cubic centimetre over eight hours and 1.0 over a 30 minute sampling period. Those are workplace limits, not a safe threshold, and EPA says no level of exposure is known to be safe.

What does asbestos look like in a ceiling?

Usually like a sprayed popcorn or acoustic texture, or like square fibreboard tiles. EPA records bans on spray-applied surfacing in 1973 and 1978, and its Region 2 fact sheet lists ceiling tiles in pre-1975 buildings. Neither texture nor tile pattern proves content, so a ceiling you plan to scrape or remove needs a lab result first.

What does asbestos look like in walls?

Usually invisible. In walls it sits in joint compound, textured paint and plaster, which look like any other finish, or in vermiculite poured into cavities. CPSC records that patching compounds were banned in 1977. EPA recommends sampling joint compound and wallboard together as one wall system, and advises against opening walls to look for vermiculite.

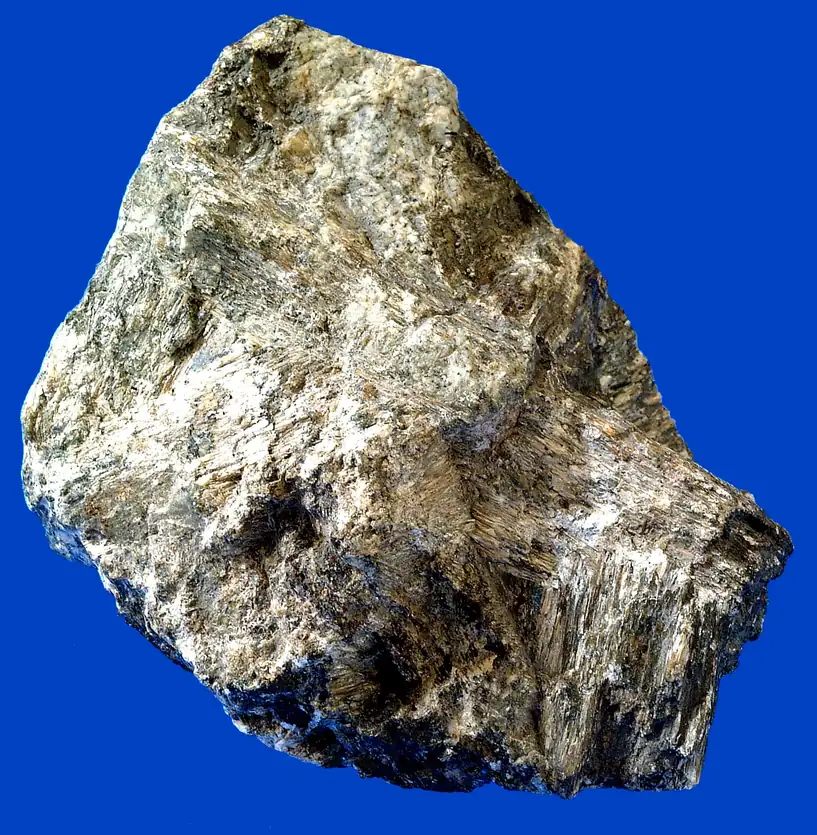

What does asbestos look like to the human eye?

As a raw mineral it can look like silky fibre bundles in rock, and NSW guidance notes it can be blue, brown, green or white. In a building product the fibre is bound into cement, vinyl, plaster or insulation. DOE’s insulation guide notes that the most hazardous fibres are too small to see, so identification relies on microscopy.
