Asbestos Pipe Insulation: How to Identify It and What Next

The forms it took

Pipe insulation was a catalogue product, and the catalogues survive. The 1911 Philip Carey Company catalogue, a public domain scan, sold its coverings in sections three feet long, cut in halves lengthwise, each with a canvas jacket. Fittings got their own sectional covers, and over 10 inches the catalogue says plastic cement was generally used. Boilers took blocks with a thin coat of cement over them.

Form	How the source describes it	Where you see it
Magnesia sectional covering	About 85% carbonate of magnesia, 15% asbestos fibre; 3-foot sections split lengthwise, canvas jacket	Straight steam and hot water runs
Air cell	Alternate layers of plain and corrugated asbestos paper, forming dead air cells; half-sections with canvas jacket	Straight runs, lower-pressure lines
Molded asbestos covering	Asbestos fibre and magnesia molded into sections, canvas jacket	Straight runs
Felt and laminated coverings	Asbestos felt or serrated asbestos paper layers, often with wool felt	Underground and wet lines
Fitting covers and plastic cement	Sectional covers for elbows, tees and valves; cement troweled on larger fittings	Elbows, tees, valves

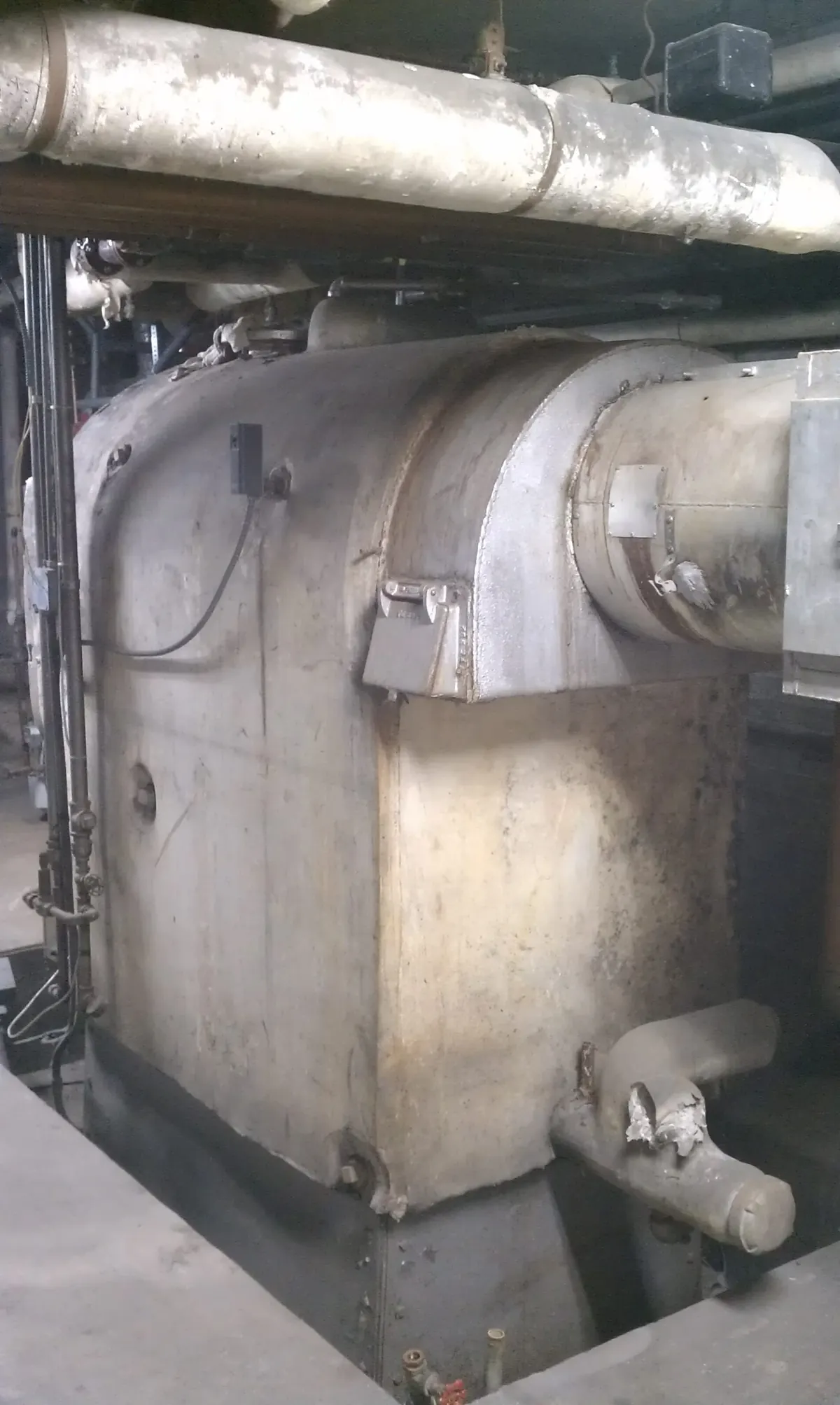

Blocks and cement on boilers	Sectional blocks with a thin coat of cement over them	Boilers, domes, heaters, breeching
Tape and blanket	Pipes covered with an asbestos blanket or tape	Hot water and steam pipes

The Asbestos.com insulation guide describes surviving pipe wrap as having a corrugated cardboard texture, chalky white or gray, often under a canvas or paper jacket, and block as white or gray slabs. The Minnesota Department of Health product list lists pipe lagging, pipe elbow insulation, boiler and breeching insulation, tank and duct insulation and thermal taping compounds. For attic and wall insulation, see our asbestos insulation page.

Why regulators call it TSI, and why it is usually friable

Contractors and inspectors rarely say pipe lagging in paperwork. The federal rules use defined terms, and those terms decide which procedures apply.

Term	Definition	Source
Thermal system insulation (TSI)	Material on pipes, fittings, boilers, breeching, tanks, ducts or other components to prevent heat loss or gain; TSI ACM is over 1% asbestos	OSHA 29 CFR 1926.1101
PACM	TSI and surfacing material in buildings constructed no later than 1980, presumed asbestos until rebutted	OSHA 29 CFR 1926.1101
Class I work	Removal of TSI and surfacing ACM and PACM	OSHA 29 CFR 1926.1101
Class III work	Repair and maintenance where ACM, including TSI, is likely to be disturbed; no more than one 60 by 60 inch bag of material	OSHA 29 CFR 1926.1101
Friable (NESHAP)	Over 1% asbestos and, when dry, can be crumbled or reduced to powder by hand pressure	40 CFR 61.141
RACM	Friable material, plus nonfriable material that has become or will become friable	40 CFR 61.141

Friability is the point. The non-mandatory Appendix H to OSHA 29 CFR 1926.1101 says the potential to release fibres depends largely on friability, and names pipe and boiler insulation among the places asbestos is present. EPA singled the category out early: the 40 FR 48292 (14 October 1975) required that friable molded and wet-applied insulation installed afterwards contain no commercial asbestos. That rule survives as 40 CFR 61.148.

Corrugated paper, the air cell material, went later. EPA's 1994 technical amendment defines it with pipe coverings as a major application, and 40 CFR 763.165 has barred its manufacture and import since 26 August 1996. The full sequence is on our when was asbestos banned page.

Identification clues, and their limits

EPA homeowner guidance is blunt: generally you cannot tell whether a material contains asbestos by looking at it unless it is labelled, and if in doubt you should treat it as asbestos and leave it alone. The clues below raise or lower suspicion. None settles it.

Clue	What it suggests	Why it is not proof
Building constructed 1980 or earlier	OSHA presumes TSI is asbestos	A presumption, not a result
Sectional wrap with a canvas or paper jacket and bands	Matches the catalogue forms	EPA: appearance alone does not identify asbestos
Corrugated layers visible at a cut end	Matches air cell	Only a lab can confirm fibre
Hard plaster-like coating on elbows, tees, valves	Fitting cement; EPA says sample each system	Fittings and runs can differ
Chalky white or gray, crumbles when touched	Friable insulation	Do not touch to test it
Fiberglass, foam glass or rubber	AHERA lets an inspector skip sampling	AHERA treats patched sections as separate areas

The federal school rule shows how professionals sample. Per 40 CFR 763.86, an accredited inspector takes at least three bulk samples from each homogeneous area of TSI, one from a patch under 6 linear or square feet, and samples each system where cement or plaster is used on fittings. Fees are on our asbestos testing cost page; general identification is on what does asbestos look like.

Burst pipes, floods and fire: damage scenarios in restoration

Water losses and old pipe insulation meet constantly, because the insulation sits on the plumbing that fails. EPA’s 40 CFR 763.88 assessment rule lists the damage signs to look for: flaking, blistering, water damage and severely torn jackets.

Scenario	What happens to TSI	First moves	Rule that applies
Burst or frozen pipe	Wet, sagging or split lagging; debris in the water	Stop the water; keep people out; sample before tear-out	NESHAP emergency renovation; OSHA Class I or III
Basement flood	Lower runs and boiler bases soaked; jackets loosen	Do not sweep or vacuum debris; mark the area	EPA homeowner guidance
Fire or smoke	Charred jackets, cracked cement, fallen pieces	Assess before demolition and cleaning	NESHAP inspection duty for covered buildings
Mechanical damage in repairs	Torn jackets, gouged sections	Stop work; wet and wrap only if trained	OSHA Class III

The emergency is anticipated in the rules. 40 CFR 61.141 defines an emergency renovation as one caused by a sudden, unexpected event, including nonroutine equipment failure, and per 40 CFR 61.145 the notice is due as early as possible but no later than the following working day. Repair context is on our burst pipe repair page, and the scale of the problem on our frozen pipe damage statistics report.

Found suspect lagging? A seven-step path

• 1. Stop and leave it alone. EPA’s first rule is do not disturb undamaged material, and do not sweep, vacuum or dust debris.
• 2. Is it damaged, wet or crumbling? If no, go to step 3. If yes, keep people and pets out, turn off forced-air heating and cooling as EPA describes contractors doing, and go to step 4.
• 3. Will any planned work touch it? If no, monitor it for wear. If yes, go to step 4.
• 4. Get it sampled by an accredited inspector, separate from the removal firm, as EPA advises.
• 5. Negative result for every homogeneous area? Proceed with normal work and keep the report.
• 6. Positive, or presumed? Choose repair (encapsulation or a protective jacket) for minor damage, or removal by a trained abatement firm.
• 7. Check state and local rules on our accreditation map before anyone, including the owner, removes it.

Steps 1, 4 and 6 follow EPA homeowner guidance, which says pipe, furnace and boiler insulation can sometimes be sealed, that exposed piping may be covered with a protective wrap or jacket, and that removal is the choice when damage is extensive or remodelling will disturb it.

Glove-bag removal under OSHA 1926.1101(g)

A glove bag is a sealed plastic sleeve with built-in gloves, taped around the pipe so the insulation is cut away inside it. OSHA permits glove bag systems under OSHA 29 CFR 1926.1101 paragraph (g)(5)(ii) for straight runs, elbows and other connections, with specific rules. EPA’s homeowner page says glove bags may be adequate for some repairs such as pipe insulation removal.

Requirement	What OSHA says	Why it matters
Bag	6 mil plastic, no seam at the bottom; no more than 60 by 60 inches	Contains debris and water
Fittings	Bags for elbows and connections must be designed for them, unmodified	No improvised bags on fittings
Fit	Covers the full pipe circumference; smoke-tested and sealed before use	Proves the enclosure holds
Use	Once only, never moved	A new bag for each position
Temperature	Not on surfaces above 150 degrees F	Hot lines must cool or use another method
Adjacent material	Loose material nearby wrapped in two layers of 6 mil plastic	Stops disturbance spreading
Crew and close-out	At least two people for Class I; bag collapsed with a HEPA vacuum	Staffing and close-out are set by rule

The bag is not a shortcut around the rest of the standard. Per OSHA 29 CFR 1926.1101, all work uses wet methods, HEPA vacuums and prompt cleanup in leak-tight containers; Class I work is supervised by a competent person; and respirators are required for Class I work and for Class III work that disturbs TSI.

The homeowner rules

Federal law treats houses gently and workers strictly. 40 CFR 61.141 excludes residential buildings with four or fewer dwelling units from its facility definition, so the federal inspection and notice rules do not reach most houses. OSHA 29 CFR 1926.1101 protects employees, so it binds any contractor you hire, whatever the building.

Situation	EPA NESHAP	OSHA 1926.1101	Net effect
House or building of 1 to 4 units, owner doing the work	Outside the federal facility definition	Not an employer	State and local rules may still apply
Same house, contractor hired	Outside NESHAP	Contractor’s crew is covered	Class I or III procedures
5 or more units, commercial, public	Inspection always; notice at 260 linear ft of pipe or more	Covered	Both sets of rules

EPA’s guidance still points one way. EPA homeowner guidance says removal is complex and should be done only by a trained and accredited professional, that improper removal may increase exposure, and that taking samples yourself is not recommended. Its don’ts include sawing, sanding, scraping or drilling asbestos material.

Published costs

Price guides quote pipe work per square foot, which is an odd unit for a pipe. Treat them as rough bands, and note the dates.

Source	Date	What is priced	Published figure, per the source
Fixr	Updated 18 Aug 2022	Pipe insulation removal	$10 to $15 per sq ft
Fixr	Updated 18 Aug 2022	Boiler; duct	$30 to $40; $35 to $55 per sq ft
Fixr	Updated 18 Aug 2022	Hourly rate	$400 to $600 (average $500)
HomeAdvisor	Updated 17 Jun 2026	Pipe insulation; HVAC ducts	$5 to $15; $35 to $55 per sq ft
HomeAdvisor	Updated 17 Jun 2026	Typical project	$1,216 to $3,283
The Asbestos Institute	Feb 2022 post, 2021 data	Removal minimum fee	$1,500 to $3,000 (average $2,250)

Both guides put boiler and duct work well above pipe runs. Our asbestos removal cost page covers abatement pricing across materials, and does insurance cover asbestos removal covers policy language.

For contractors: scope, documentation and the line items

On a water or fire job, suspect TSI changes the scope before it changes the price. Under OSHA paragraph (k), owners must determine and disclose ACM and PACM before work starts, and employers must identify it before their crews go in.

Line item or record	Why it is there	Rule
Sampling and lab analysis	Clears or confirms each homogeneous area and fitting system	40 CFR 763.86
Abatement as its own line	Class I removal needs a competent person and controls	OSHA 29 CFR 1926.1101
Containment beyond the bag	Over 25 linear or 10 square feet of TSI, barriers or isolation	OSHA 29 CFR 1926.1101
Notification	Covered buildings at 260 linear feet; emergency notice by next working day	40 CFR 61.145
Owner disclosure	Owners must tell bidders and tenants where ACM or PACM is	OSHA 29 CFR 1926.1101

Give the adjuster the lab report, the linear footage and fitting count, and the reason drying or demolition paused. Keep the sampling result with the moisture map; our water damage restoration cost page shows where the line sits in a typical estimate. More rules are on the standards hub.

Questions people actually ask

How to tell if pipe insulation has asbestos?

Only a lab can tell. EPA says you generally cannot identify asbestos by looking unless the material is labelled. Clues raise suspicion: a building from 1980 or earlier, canvas-jacketed sections, corrugated layers at a cut end, or plaster-like fitting covers. An accredited inspector takes bulk samples for lab analysis.

How bad is asbestos pipe insulation?

It is the category regulators treat most strictly because it is usually friable, meaning it crumbles under hand pressure, which is why OSHA makes its removal Class I work. Intact and undisturbed, EPA advises leaving it alone. For health questions, see the out-of-scope note at the top and ask a doctor.

When did they stop using asbestos in pipe insulation?

In steps. A 1975 Clean Air Act amendment required new friable molded and wet-applied insulation to contain no commercial asbestos. Corrugated paper, used for air cell pipe covering, has been barred from manufacture and import since 26 August 1996 under 40 CFR 763.165. Installed insulation was never ordered out.

What does 1920s asbestos insulation look like?

Catalogues of the era describe it. According to the 1911 Philip Carey Company catalogue, steam pipe coverings came in 3-foot sections split lengthwise with a canvas jacket, including 85% magnesia covering with 15% asbestos fibre, and air cell covering made of plain and corrugated asbestos paper. Fittings were capped with sectional covers or troweled cement.

Can I wrap or encapsulate asbestos pipe insulation myself?

EPA says pipe, furnace and boiler insulation can sometimes be sealed or covered with a protective wrap or jacket, but that this should be done only by a professional trained to handle asbestos safely. Federal NESHAP rules do not cover most houses, but state and local rules may. Check before you start.

Can asbestos pipe insulation be removed with a glove bag?

Yes, on straight runs, elbows and other connections, where OSHA allows glove bag systems in place of a larger enclosure. The limits are strict: 6 mil bags no larger than 60 by 60 inches, one use, no surfaces above 150 degrees F, and two workers for Class I removal, per 29 CFR 1926.1101.
